Radar + Optical Integration

Radar Detection.
Optical Tracking.
One Integrated System.

The MWIR/LWIR, EO, and laser rangefinder modules below are integrated onboard the optical equipment. Radar detects the target and cues the optical system for visual and thermal tracking. Onboard AI processing can then classify observed objects, connecting detection, classification, tracking, and ranging in one integrated surveillance system.

Explore the onboard modules

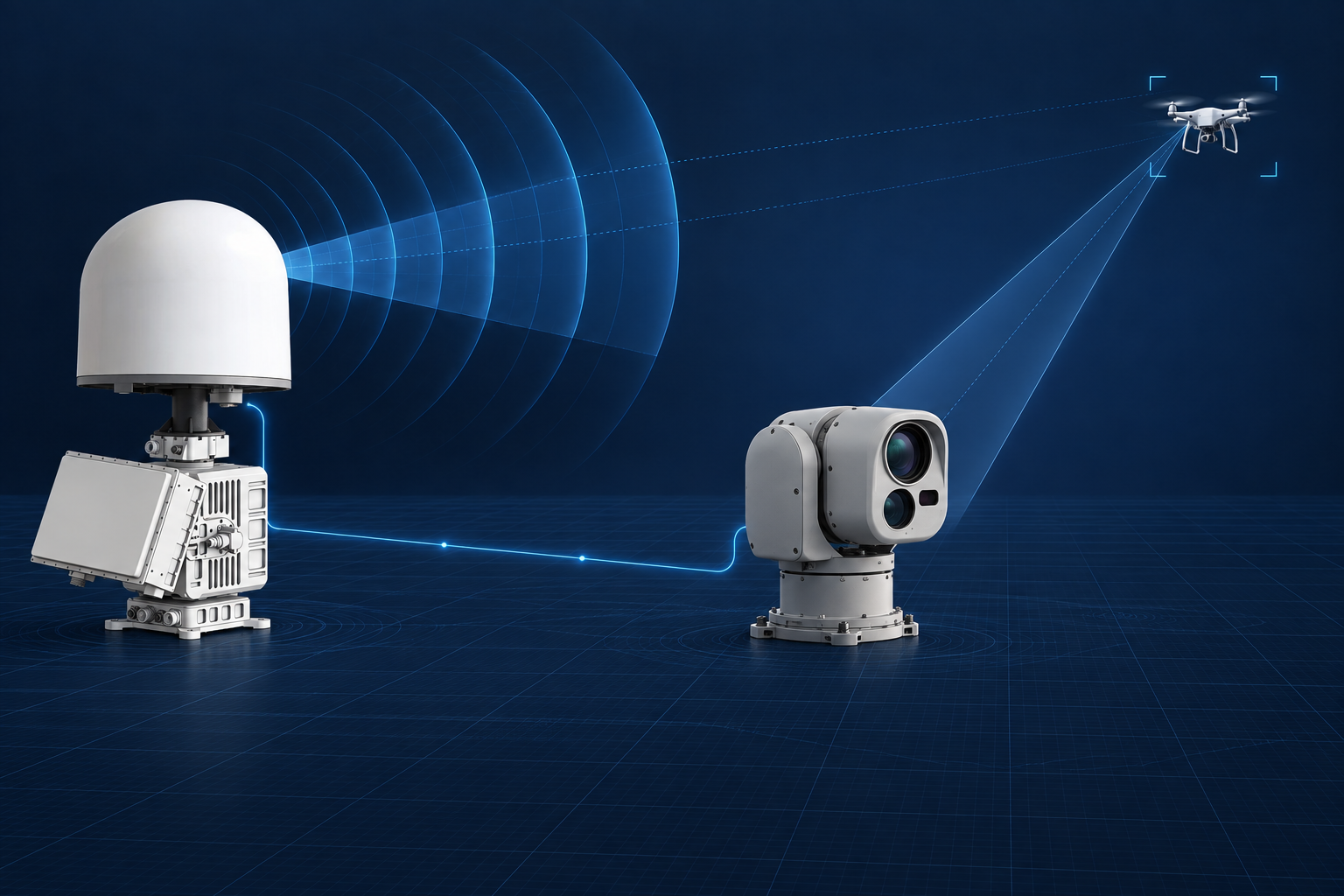

Concept illustration of the LR-500HB radar detecting a drone and cueing a compact optical unit to track the same target
Illustration for explanatory purposes.
  1. 01

    Radar Detection

    Detect the target and cue the optical system.

  2. 02

    Optical Tracking

    Confirm and track with onboard EO/IR modules.

  3. 03

    AI Classification

    Use onboard AI to distinguish object types in EO/IR imagery.

  4. 04

    Integrated Monitoring

    Combine radar tracks, imagery, classifications, and range data.

Onboard Edge AI

Track the object.
Understand what it is.

An onboard AI computing module, such as NVIDIA Jetson Orin, can process EO/IR imagery directly within the optical equipment. With trained vision models, it can distinguish object classes such as drones and birds and attach classification results to the observed track.

Radar provides the initial detection and cue. Optical sensors provide visual and thermal observations. Onboard AI adds object classification, while the integrated system presents imagery, track information, and range measurements together for operator review.

Radar cueEO/IR observationAI classificationOperator review

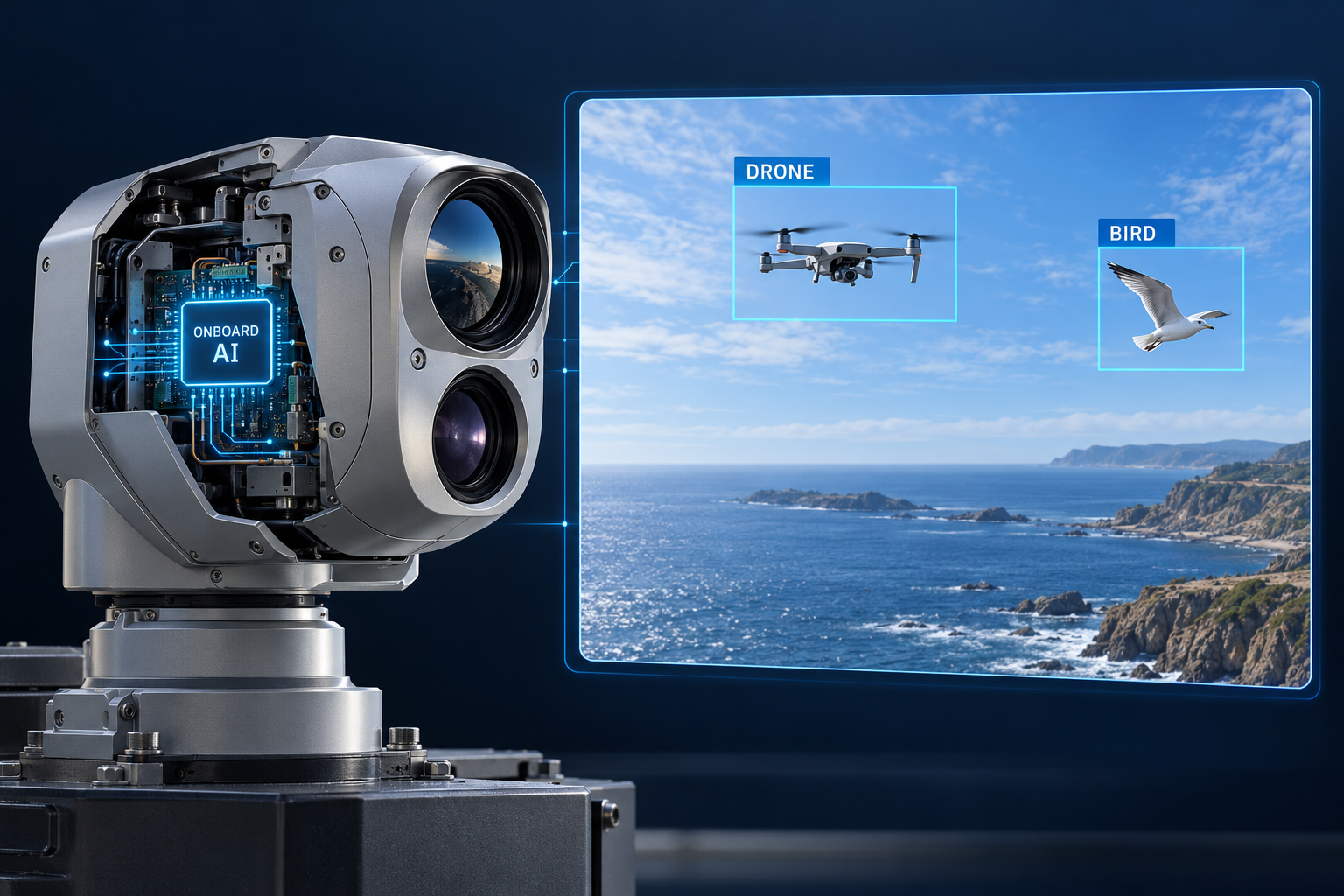

Concept illustration of onboard AI processing in an optical unit, with separate drone and bird classifications in a camera view
Concept illustration of onboard AI classification.
Product Lineup

Precision EO/IR Modules

The modules below form the onboard sensing components of the optical equipment, bringing thermal imaging, visual observation, and distance measurement into a radar-linked integrated system.

Cooled / Uncooled

MWIR/LWIR Module

The LC series is a next-generation cooled/uncooled thermal module designed to deliver exceptional performance through advanced technology. It provides consistently high-quality thermal imaging across a wide range of operating conditions without requiring user adjustment. The LC series enhances situational awareness, enabling reliable target detection and response in dynamic environments. Leveraging LOOP's precision manufacturing capabilities, we deliver products tailored to meet specific customer requirements.

SENSORCooled Focal Plane Array (FPA) MCT HgCdTe detector
RESOLUTION640 x 512
PIXEL15um
NETD≤20mK
WAVELENGTH3.7~4.8μm
FOCAL LENGTH90~1100mm 12X, F5.5
FOV6.1°x4.9°~0.5°x0.4°
ANGULAR RADIAN0.17~0.014mrad
BAD SPOT CORRECTIONSupport
SDE/AGCSupport
PSEUDO COLOR16 pseudo color and B/W, B/W inverse
DIGITAL ZOOM1X~8X continuously (Step 0.1)
STORAGE TEMP.-45°C~+70°C
INPUT VOLTAGEDC24V (cooling), DC12V (power strip)
POWERMax ≤30W, stable ≤25W
WORKING TEMP.-40°C~+60°C
INGRESS PROTECTIP67 (front)

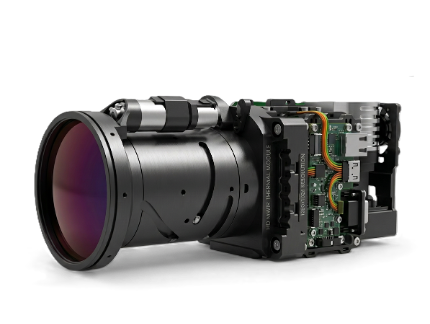

Thermal module frontThermal module rear
Electro-Optical

EO Module

The EO module delivers high-quality visual imaging with advanced zoom capabilities, ensuring clear and reliable target observation in various environments. It incorporates enhanced image processing features and supports flexible system integration for a wide range of surveillance and monitoring applications. It provides stable performance under varying lighting conditions, maintaining consistent image clarity in challenging environments.
In addition, its robust design enables reliable operation in demanding field environments.

SENSOR1/8" Star Level CMOS, Integrated ICR Dual Filter D/N Switch
RESOLUTION2MP (1920x1080)
FRAME RATE60Hz, 30FPS
VIDEO BIT RATE23Kbps-16Mbps
IMAGE SETTINGSupports WDR, strong light suppression, DNR, automatic WB
FOCAL LENGTH12.5-775mm
IMAGE STABILIZATIONSupport
DEFOGSupport
COMPRESSIONH.265 / H.264 / MJPEG
WORKING TEMP.-40°C~+60°C
STORAGE TEMP.-45°C~+70°C
INPUT VOLTAGEDC12V±10%
POWER6W Static (15W MAX)

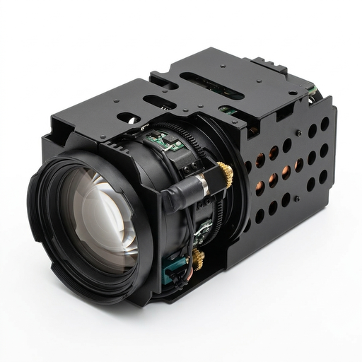

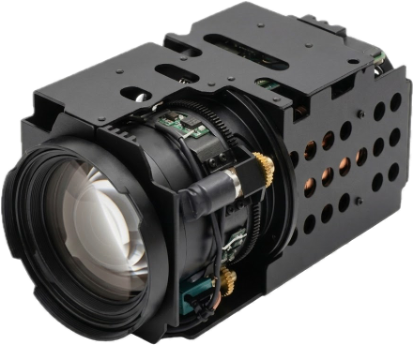

EO module
Laser · High Accuracy

Rangefinder Module

LOOP's laser rangefinder module delivers precise distance measurement with high accuracy over short to mid-range distances. It features fast response rates and stable performance, ensuring reliable operation in dynamic environments. With its compact form factor, the module supports both red and green laser options for enhanced visibility and offers flexible communication interfaces for seamless system integration. Designed for versatility, it is well-suited for applications such as industrial automation, robotics, and other precision measurement systems.

WAVELENGTH1570nm
MAX. RANGE10,000m
MIN. RANGE100m
ACCURACY±2m
FREQUENCY5Hz
FOCAL LENGTH12.5-775mm
WORKING TEMP.-40°C~+60°C
STORAGE TEMP.-45°C~+70°C

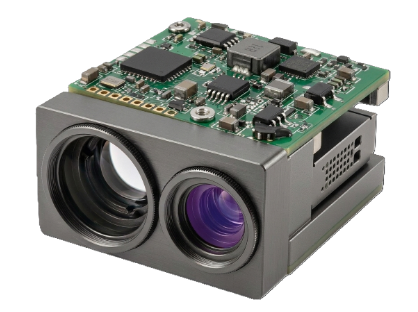

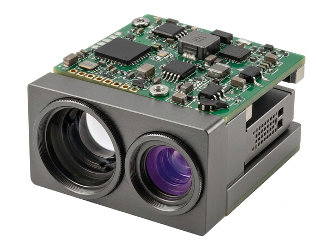

Rangefinder module
